Dual-Valve Inline Visual Dispensing Machine for Smartphone Assembly & SMT

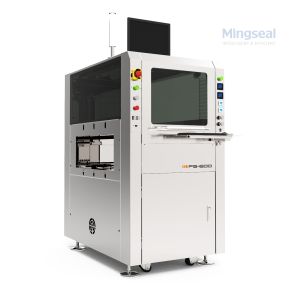

The FS600DF by Mingseal is a high-precision, dual-valve inline dispensing machine designed specifically for mid- to large-scale production lines in the smartphone assembly and SMT industries. Engineered to optimize efficiency in demanding applications such as side-button assembly on smartphones, this robust system features a dual-track configuration—comprising a working track and a transport track—to maximize throughput and production flexibility. Its advanced dual-valve design enables sequential or simultaneous dispensing of various materials such as thermosetting glue, UV glue, silver glue, and flux, ensuring precise, reliable application with minimal waste.

Key Advantages

• Dual-Track Configuration: Featuring separate operational and transport tracks, the FS600DF enables continuous work cycles with simultaneous dispensing and substrate loading/unloading, reducing downtime and enhancing overall equipment effectiveness (OEE).
• Versatile Material Compatibility: Supports multiple dispensing materials, including thermal curing adhesives, UV curable resins, silver glue for conductivity, and flux, providing process flexibility to meet various smartphone side-button assembly needs.
• Precision & Stability: With ±0.02mm positioning accuracy on the X/Y axis and ±0.01mm on Z, coupled with vision-based positioning, the machine ensures consistent glue application even on complex smartphone component geometries.
• Cost-Effective Inline Production: Designed for non-cleanroom conditions, it eliminates expensive environmental controls while maintaining premium dispensing quality, lowering operational costs.
• Robust Motion System: Linear motors on the X/Y axes and servo-driven Z-axis guarantee smooth, fast, and repeatable motion, with speeds up to 1300mm/s and acceleration up to 1.3g.

Technical Specifications

Conclusion

The Mingseal FS600DF Dual-Valve Inline Visual Dispensing Machine is a powerful solution for smartphone manufacturers and SMT assemblers seeking high throughput, precision, and cost efficiency in their side-button assembly and FPC reinforcement processes. Its dual-track and dual-valve design ensures you achieve rapid, reliable dispensing in a standard workshop environment, making it a competitive choice for smart factories worldwide.

Q&A

Q1: How does the dual-valve system improve production efficiency?
A: The dual-valve design allows for sequential or simultaneous dispensing of different materials or increased output on the same line, effectively doubling throughput without sacrificing accuracy.

Q2: Is the machine suitable for non-cleanroom environments?
A: Yes, the FS600 series is tailored for standard workshop environments, removing the need for expensive cleanroom facilities while maintaining dispensing precision.

Q3: Can this system integrate with existing production lines?
A: Yes, with SMEMA and MES communication protocols, the FS600DF easily integrates into automated SMT production lines for seamless workflow and data exchange.
